Cable Clips
Brandauer’s precision cable clips (including open arm, buckle, hook, and ribbon styles) provide reliable wire management for automotive, industrial, and electronics applications.
Secure wires with precision and ease
Cable Clips (By Brandauer) manufacture and supply; Open Arm, Buckle, Hook and Ribbon clips for a wide range of industries, with over 50 years’ experience in cable installation, fixing and tidying solutions.
Cable clips are compact fastening components used to secure, guide and organise cables, wires and harnesses, helping to prevent movement, reduce wear and strain on cables, and improve overall safety, reliability and appearance of a otherwise cluttered space. The self-adhesive solution offers a quick, strong and economical method to fixing round, bunched, or ribbon cables easily, without causing damage to clean and dry surfaces.
All supplied products are ready for re-distribution and use and benefit from an easy-peel functionality across the range for immediate, quick self-adhesive application.
The PE foam is coated with a very high-performance adhesive on both sides, giving outstanding shear performance.
The manufacture of the product range is controlled by an approved ISO 9001:2015, ISO 14001:2015 and OHSAS. All goods are RoHS compliant.
Manufacturing heritage of over 50 years
Brandauer’s self-adhesive cable clips journey began in the year 1972 when CB Cable Clips was first established. The first simple yet effective design was developed and brought to market by Brandauer company director at the time, Joseph Adrien Letière Petit. Between Joseph and the Brandauer engineers, a full-range of Cable Clips had been designed and manufactured, and production began.
Fast forward to 2019, and CB Cable Clips was officially purchased by C. Brandauer & Co. Ltd. Making it the first acquisition in the company’s 150+ year history. Transferring all customers, intellectual property, stock, and assets. This move safeguarded current jobs and actually created 2 more positions!

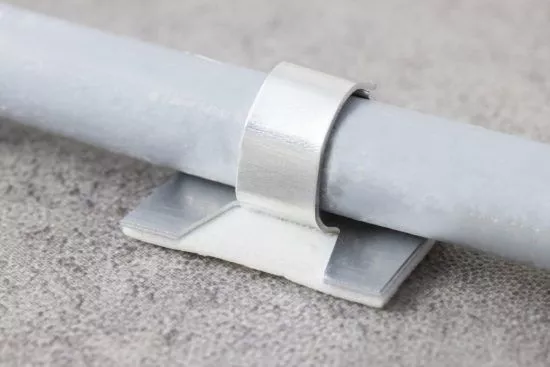

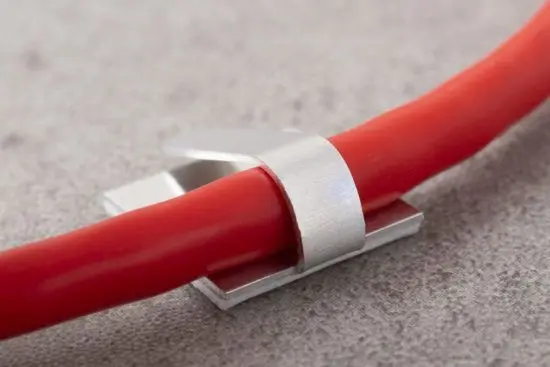

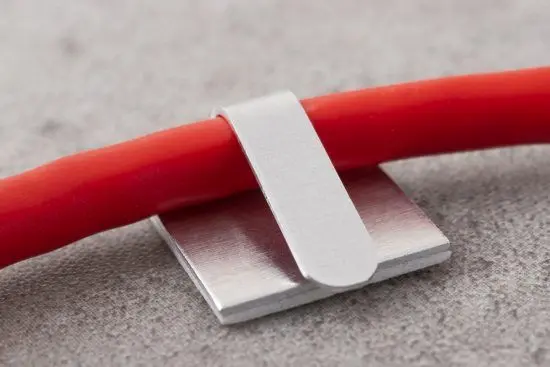

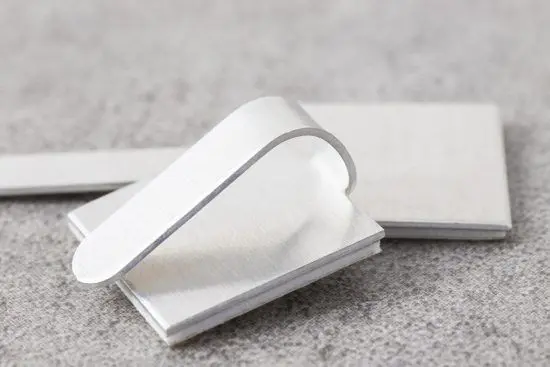

Open Arm Clips
| Clip No. | Dim. A | Dim. B | Dim. C | Max. cable/s dia. | Colour |
|---|---|---|---|---|---|
| ACC01/01W/01B | 11.1mm | 15.9mm | 9.5mm | 6.3mm | Aluminium |
| ACC02/02W/02B | 15.9mm | 19.0mm | 13.9mm | 10.0mm | Aluminium |

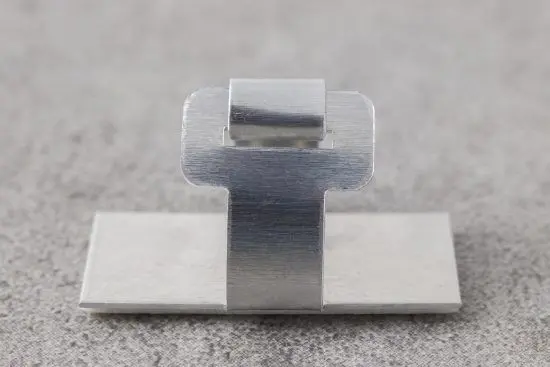

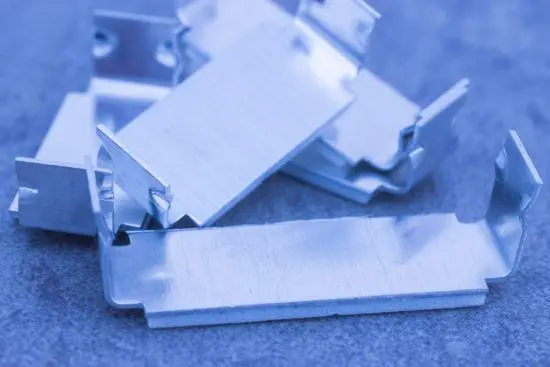

Buckle Clips
| Clip No. | Dim. A | Dim. B | Dim. C | Dim. D | Max. cable/s dia. | Colour |
|---|---|---|---|---|---|---|
| ACC05 | 63.5mm | 35.8mm | 12.0mm | 6.4mm | 13.0mm | Aluminium |
| ACC06 | 89.0mm | 44.5mm | 16.3mm | 8.0mm | 19.0mm | Aluminium |

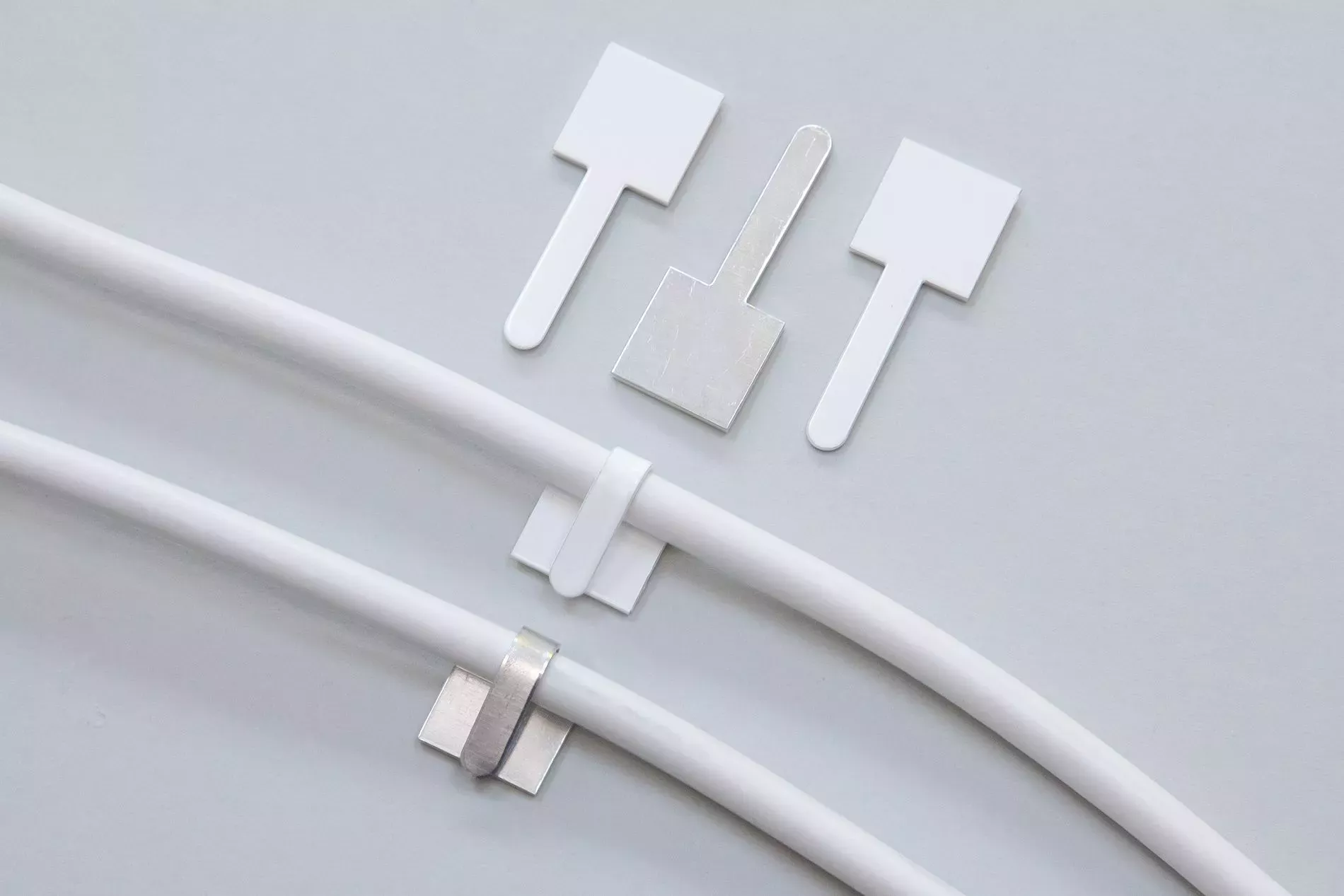

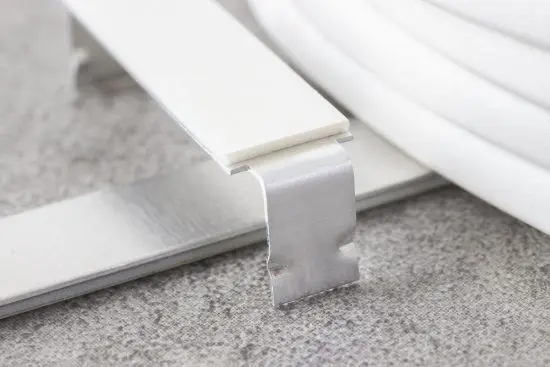

Hook Clips
| Clip No. | Dim. A | Dim. B | Dim. C | Dim. D | Dim. E | Colour |
|---|---|---|---|---|---|---|
| ACC07/07PK | 25.4mm | 25.4mm | 69.8mm | 7.9mm | 44.4mm | Aluminium |
| ACC08/08PK | 16.0mm | 16.0mm | 41.0mm | 5.0mm | 25.0mm | Aluminium |

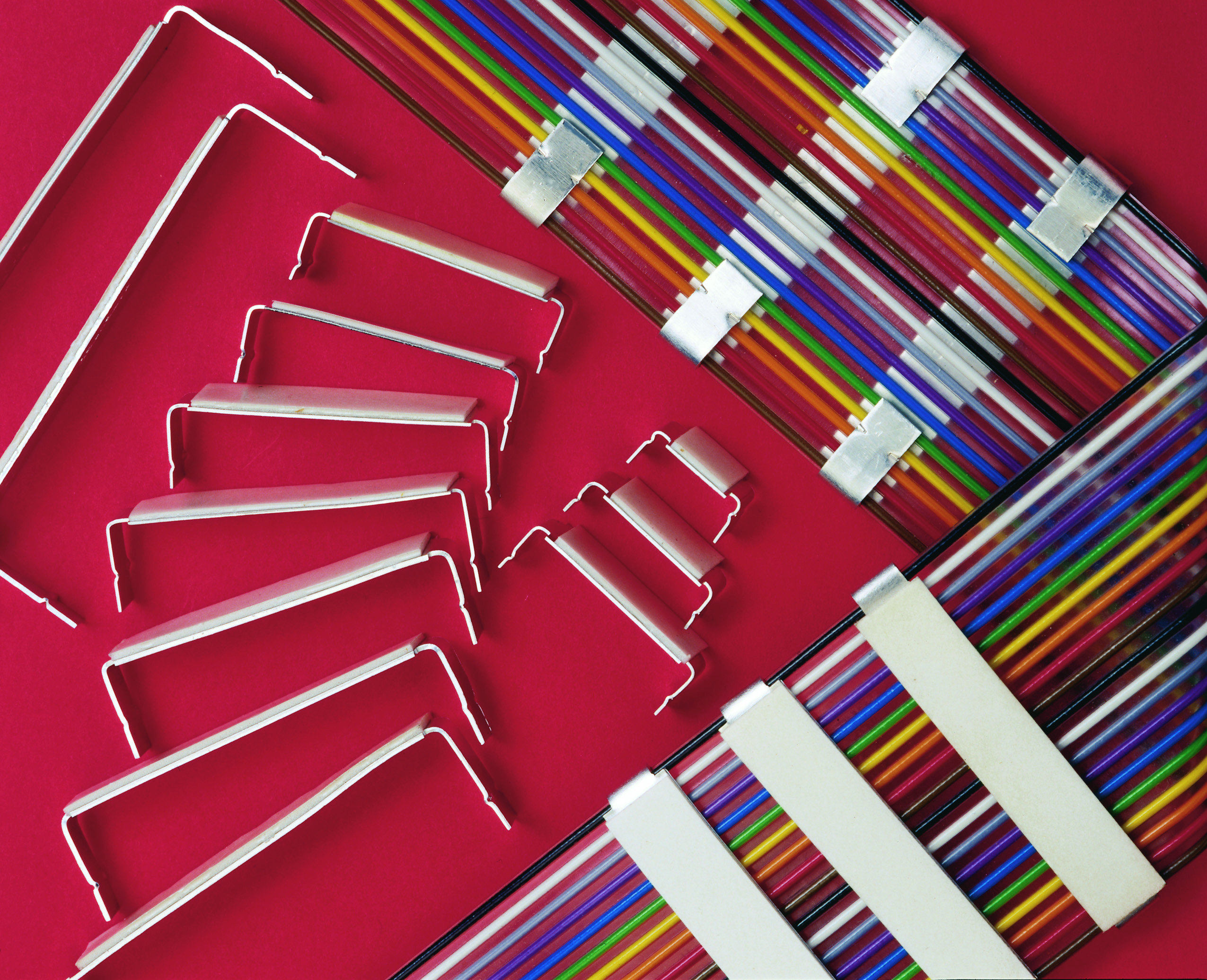

Ribbon Clips
| Clip No. | Dim. A | Dim. B | Cable width |
|---|---|---|---|
| ACC10 | 12.9mm | 9.4mm | 12.7mm |
| ACC15 | 19.3mm | 15.7mm | 19.0mm |
| ACC20 | 25.6mm | 22.1mm | 25.4mm |
| ACC26 | 33.4mm | 29.8mm | 33.1mm |
| ACC30 | 38.3mm | 34.8mm | 38.1mm |
| ACC34 | 43.6mm | 40.1mm | 43.3mm |
| ACC40 | 51.1mm | 47.5mm | 50.8mm |
White tape specification
A very strong high density closed cell polyethylene foam, coated on both sides with a very high performance cross linked rubber adhesive, protected by a siliconized release liner.
Benefits
- Good gap-filling between slightly uneven materials
- Very high adhesion to most common materials
- RoHS compliant
- Good adhesion copes well with difficult surfaces and conditions
- High shear and foam strength for mounting and holding
- Good long-term ageing and resistance to water
- Outstandingly reliable general-purpose product
Production advantages
- Clean and simple to use
- Quick and efficient application
- Consistent adhesive coating thickness
- Instant adhesion and consistent performance
- No hazardous fumes or drying and curing times
- Ready for the next part of the application process
- No contamination of other surfaces
Temperature range
Static shear results to steel
180° Peel adhesion results to steel

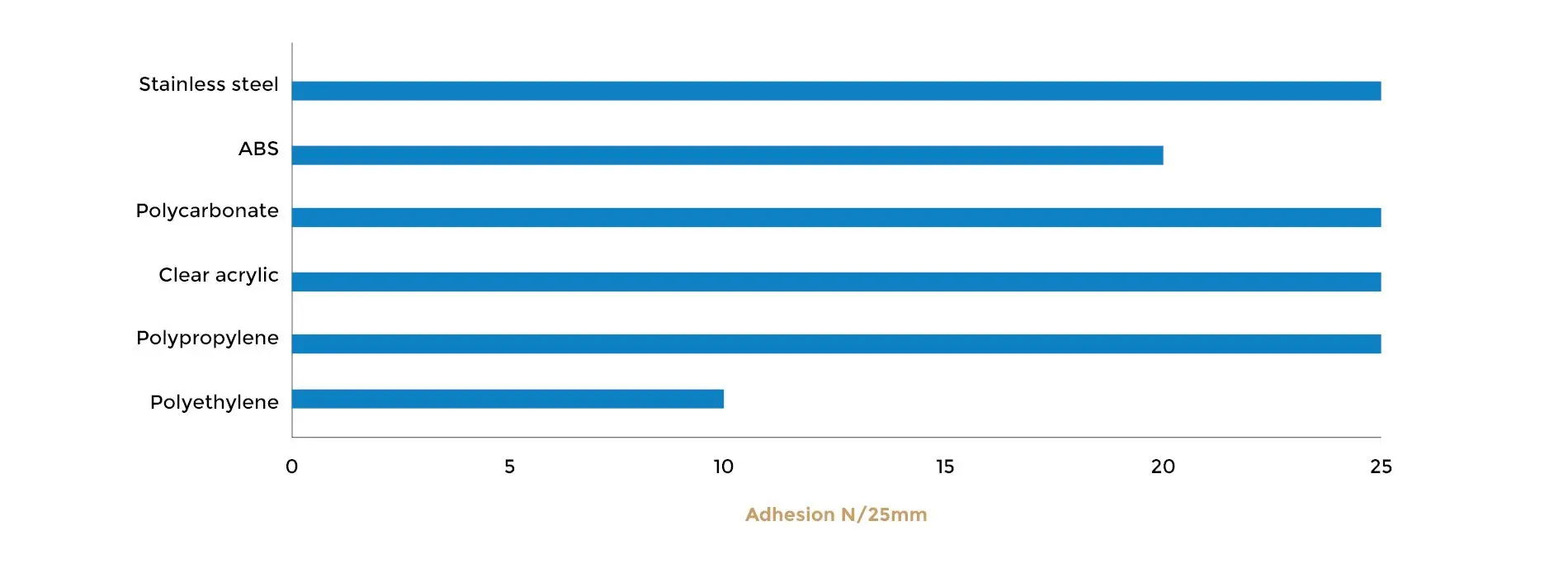

Typical surface adhesion values
Alternative designs & applications
Alternative designs and/or applications are available upon request. Use the ‘Your enquiry’ text section in the form below to specify requirements.
