Laser cutting
Brandauer’s laser cutting services deliver accurate, efficient cutting for complex metal components with clean edges and consistent results.This process is ideal for companies that demand quick turnaround components without compromising on precision.
Fast, flawless cuts that transform your metal designs into reality

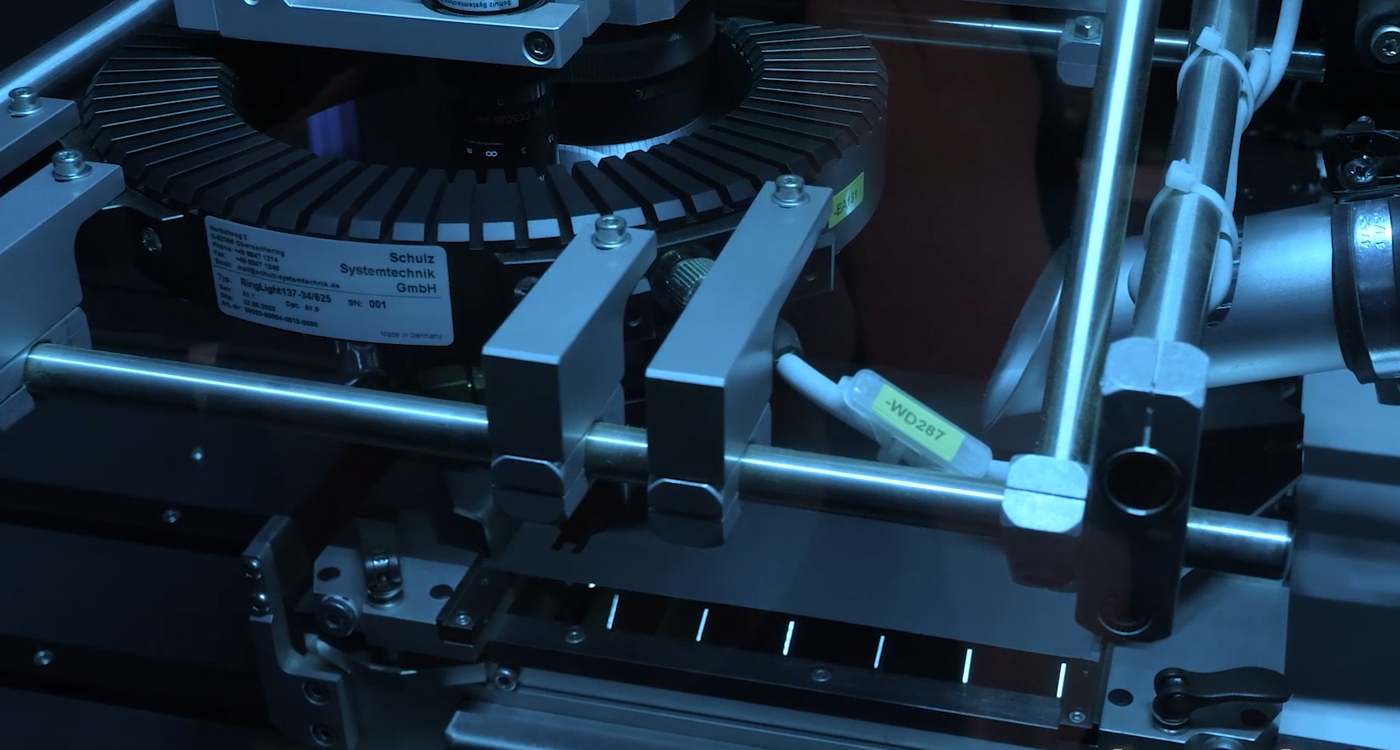

Laser cutting is an advanced manufacturing process that uses a high-powered laser beam to cut through substrate materials. Brandauer’s compact laser cutting system delivers exceptional precision for processing thin-gauge metal and alloys. Built from a high-precision granite motion module and powered by the latest 1.5kW fibre laser technology, our system combines accuracy with speed and reliability.
Who is this for?
This type of manufacturing leans perfectly into lower-volume manufacturing, from one-off production runs to consistent low-volume manufacturing. This machine allows for thin-gauge precision components to be fully manufactured without the need for a blanking tool.
Previously, this level of precision manufacturing would have required a dedicated tool to enable low-volume production to commence. Nowadays, none of that is required, meaning the longer lead times and initial investment have been completely mitigated without the loss of precision.
Expanding on this, if you need components quickly, Brandauer can turn around orders in as little as 48 hours from initial enquiry, subject to material availability. This level of speed and precision is helping companies move parts into testing, validation, and real-world use within days of placing a purchase order.
Features and benefits
Industry 4.0 and IIoT ready
Fully integrated for seamless connectivity and real-time monitoring of the production processes.
Reliable fibre laser technology
Powered by a cutting-edge 1.5kW fibre laser on a high-precision granite motion module for exceptional accuracy and consistency.
Class 1 laser safety
Our Class 1 laser housing meets the highest ergonomic standards, featuring a large working chamber and pneumatic lifting door for operator safety and convenience.
Intuitive system software
Easy-to-use software interface reduces programming time and increases productivity from day one.
Powerful CAD/CAM integration
Quick setup and efficient workflow management with comprehensive design and manufacturing software.
Versatile processing capabilities
Handle everything from simple cuts to very complex geometries with consistent, repeatable quality.
Applications
Metal processing
Cuts ferrous and non-ferrous metals and alloys, including electrical steel, brass, copper and stainless steel with precision and consistency across a thickness range of 0.1-2mm.
Speciality alloys
Process copper, brass, and aluminium for demanding applications requiring exceptional finish quality.
Delicate materials
Work with titanium and nitinol with minimal heat-affected zones, preserving material properties.
Brittle materials
Achieve precise cutting of challenging brittle materials without cracking or material stress.
Prototyping and single-unit production
Perfect for individual designs, prototypes, and low-volume production runs.
Complex geometries
From simple shapes to intricate, detailed cutting patterns—if you can design it, we can cut it.
Technical Specifications
Machine Type
High-precision CNC laser cutting system
Laser Technology
Pulsed fibre laser (StarFiber P)
Laser Power
150 W / 300 W
Peak Power
Up to 1.5 kW / 3.0 kW
Materials Processed
Thin and thick metals, alloys, titanium, nitinol, ceramics, sapphire, PCD
Motion Platform
Granite-based high-precision motion module
Axes & X/Y & Z Travel
Up to 5-axis capability (X, Y, Z + optional A & B) with an X/Y travel of 500 x 400 x 200 mm
Positioning Accuracy (X/Y)
± 0.002 mm
Repeatability (X/Y)
± 0.001 mm
Z-Axis Accuracy
± 0.04 mm
Cutting Head
High-precision head with adjustable focal position under pressure, with high stability, quick protection glass change
Software
Integrated CAD/CAM for rapid setup
Safety Classification
Laser Protection Class 1 (EN 60825-1)
Working Chamber
Large, enclosed chamber with pneumatic lifting door
Power Supply
400 VAC, 50/60 Hz
Industry Readiness
Industry 4.0 & IIoT ready
Diagnostics
Remote diagnostics and predictive maintenance
Typical Applications
Prototypes, single-unit production, complex geometries, medical and precision components
Part of Brandauer’s prototyping service
Brandauer’s high-precision laser cutting technology is the cornerstone of Brandauer’s dedicated rapid prototyping service. This is a comprehensive solution that combines laser cutting and CNC metal forming to produce fully formed, thin-gauge precision components without the requirement for an initial investment into the tooling.
On top of this cheaper alternative to precision components, one unique offering with this solution is the turnaround speed from enquiry to delivery of components. What would previously require three different suppliers, Brandauer can now deliver rapid quotes, and transform your design from a 2D drawing into a fully formed 3D component in as little as 48 hours.
